Product Description
Details:
- Sensor: 1080P/5M/Sony IMX178(Color)
- Sensor Size(mm): 1/1.8"(6.22x4.67)
- Pixel Size(μm): 2.4x2.4
- FPS: 30@1920*1080(HDMI) 25@1920*1080(WiFi)
- Binning: 1x1
- Exposure: 0.03ms~918ms
Features:

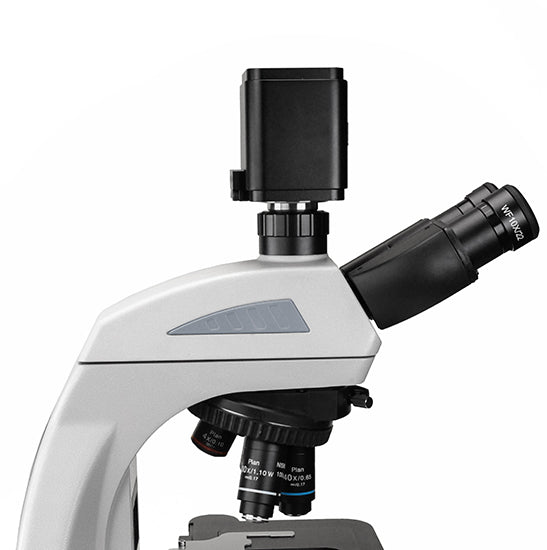

- All in 1( HDMI+WIFI) C-mount camera with Sony high sensitivity CMOS sensor;

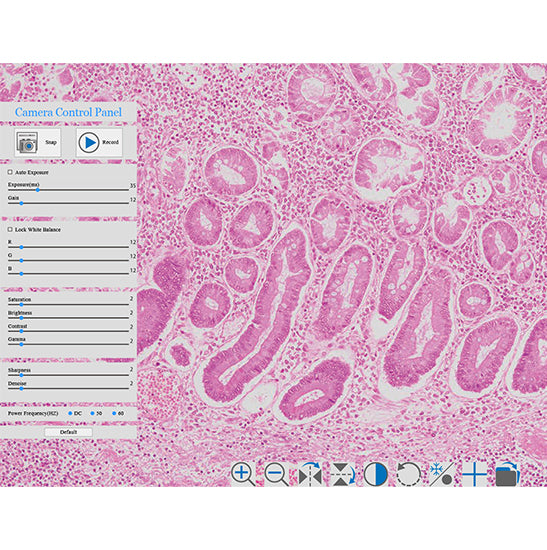

- For HDMI application, with built-in multiple-language XCamView software. The camera characteristic can be controlled by XCamView through the USB mouse. The other basic processing and choosing can also be realized by the XCamView.;
- 1920 × 1080 (1080P) resolutions to match the current high-definition displayer on the market; Support plug and play application;
- For HDMI application, 5.04M resolution image(2592*1944) can be captured and saved for browsing; For video, 1080P video stream(asf format) can be captured and saved;
- With the USB WIFI adapter, the BWHC-1080B can be used as WIFI camera, the ImageView/ImageLite advanced image processing software is used to view the video and capture image,support plug and play application;
- Ultra-Fine color engine with perfect color reproduction capability(WIFI);
- With advanced video & image processing application ImageView, which including professional image processing such as 2D measurement, HDR, image stitching, EDF(Extended Depth of Focus), image segmentation & count, image stacking, color composite and denoising(USB).
Application:
- Scientific research, education (teaching, demonstration and academic exchanges);
- Digital laboratory, medical research;
- Industrial visual (PCB examination, IC quality control);
- Medical treatment (pathological observation);
- Food (microbial colony observation and counting);
- Aerospace, military (high sophisticated weapons).

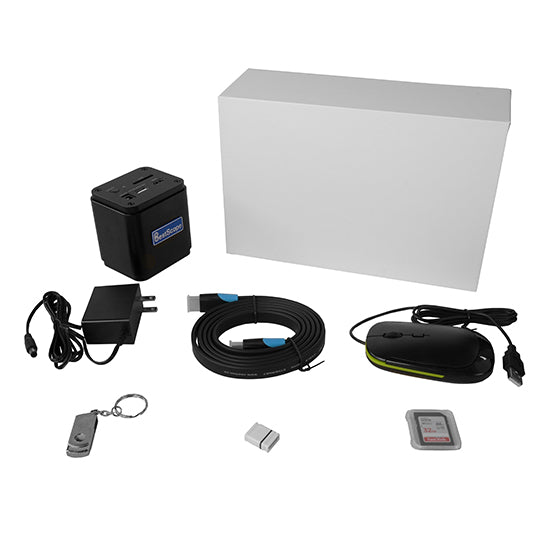

Packing Information:
- Gift box : L:25.5cm W:17.0cm H:9.0cm (1pcs, 1.43Kg/ box)
- BWHC-1080B camera
- Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A
American standard: Model: GS12U12-P1I 12W/12V/1A: UL/CUL/BSMI/CB/FCC
EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338
EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard
European standard:Model:GS12E12-P1I 12W/12V/1A; TUV(GS)/CB/CE/ROHS
EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338
EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard
- HDMI Cable
- USB Mouse
- Wireless network adapter with USB interface
- USB flash disk (Driver & utilities software)
