Product Description
Details:
- Sensor: 2.8M/ICX674ALG(Monochrome)
- Sensor Size(mm): 2/3“ (10.7x9.2)
- Pixel Size(μm): 4.54x4.54
- FPS: 15@1940x1460, 18@1932x1092
- Binning: 1x1
- Exposure: 0.05ms~1h
- USB Port: USB3.0 High-speed Port
Features:

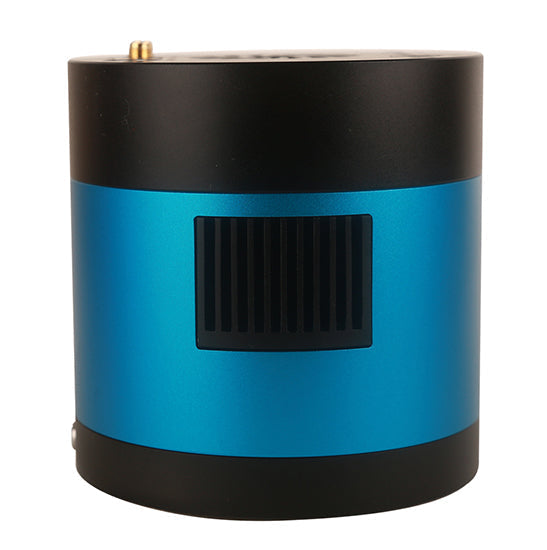

- Standard C-Mount camera with SONY ExView HAD CCD II sensors 2.8M;
- Two-stage TE-cooling with controllable electric fan assures the heat radiation efficiency;
- Image chip cooling up to 50°C below ambient;
- Working temperature can be regulated by software to specified temperature in 5 minutes;
- Anti-fogging structure (filled with nitrogen and sealed) avoids the moisture problem;
- IR-CUT/AR coated windows;
- Up to 1 hour long time exposure;
- USB3.0 5Gbit/second interface ensuring high speed data transmission;
- Ultra-FineTM color engine with perfect color reproduction capability;
- With advanced video & image processing application ImageView;
- Support both video and trigger modes;
- Providing Windows/Linux/Mac OS multiple platforms SDK;
- Native C/C++, C#/VB.NET, DirectShow, Twain control API.
Application:
- Bright field microscope;
- Dark field, differential interference (DIC) microscope;
- Live cell imaging, cell or histopathological examination, cytology;
- Defect analysis, semiconductor inspection, precision measurement;
- Weak light fluorescence imaging, GFP or RFP analysis, fluorescence in situ hybridization (FISH);
- Resonance fluorescence transfer microscope, total internal reflection fluorescence microscope, real – time confocal microscopy, failure analysis, astronomy photography.
Packing information:
- 3-A safety equipment case: L:28cm W:23cm H:15cm (1pcs, 2.8Kg/ box); Carton size:L:28.2cm W:25.2cm H:16.7cm
- BUC6B-280M camera(C-mount)
- Power adapter: input: AC 100~240V 50Hz/60Hz, ouut: DC12 V 3A
- High-Speed USB3.0 A male to B male gold-plated connectors cable /2.0m
- USB flash disk (Driver & utilities software)
