Product Description
Details:
- Sensor: 9M/IMX533(Color)
- Sensor Size(mm): 1”(11.28x11.28)
- Pixel(μm): 3.76 x3.76
- FPS: 20@2992x3000(14bit), 40@2992x3000, 62@1488x1500, 186@992x998
- Binning: 1x1 1x1 2x2 3x3
- Exposure: 0.1ms~3600s
- USB Port: USB3.0 High-speed Port
Features:

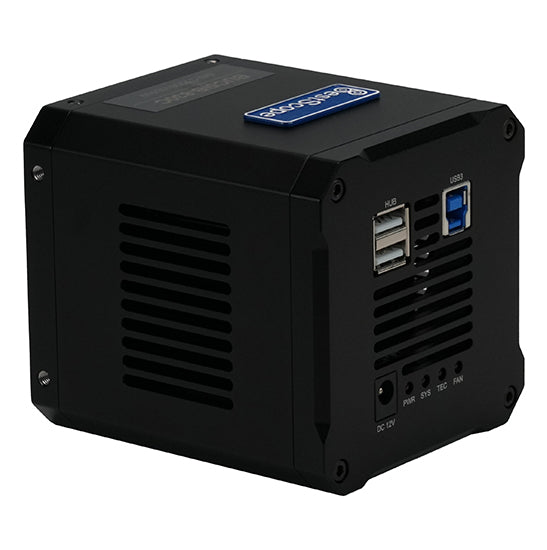

- Standard C-Mount camera with SONY Exmor CMOS sensors 9.0M;
- Two-stage TE-cooling with controllable electric fan;
- Sensor chip cooling up to 42°C below ambient temperature;
- Working temperature can be regulated to specified temperature in 5 minutes;
- Smart structure to assure the heat radiation efficiency and avoid the moisture problem;
- IR-CUT/ARcoated windows;
- Up to 1 hour long time exposure;
- USB3.0 5Gbit/second interface ensuring high speed data transmission;
- Ultra-FineTMcolor engine with perfect color reproduction capability;
- With advanced video & image processing application ImageView;
- Support both video and trigger modes;
- Providing Windows/Linux/Mac OS multiple platforms SDK;
- Native C/C++, C#/VB.NET, DirectShow, Twain control API.

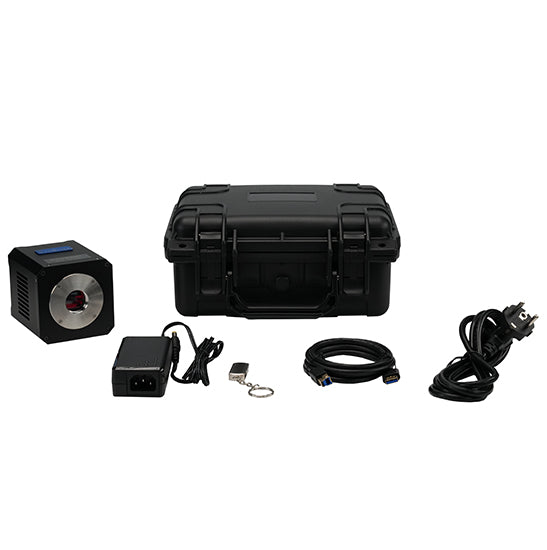

Packing Information:
- 3-A safety equipment case: L:28cm W:23cm H:15cm (1pcs, 2.8Kg/ box); Carton size: L:28.2cm W:25.2cm H:16.7cm (TBD)
- BUC5IB-900C camera(C-mount)
- Drying tube and desiccant
- Power adapter: input: AC 100~240V 50Hz/60Hz, output: DC12 V 3A
- High-Speed USB3.0 A male to B male gold-plated connectors cable /1.5m
- USB flash disk (Driver & utilities software)
