BLC-480A All-in-One Digital Microscope Camera(Sony IMX678 Sensor, 4k, 8MP)

Feature:

1. The camera and display screen are integrated together, eliminating wiring and facilitating installation
2. Sony STARVIS 2 back-illuminated CMOS sensor
3. The average delay of display screen output is 40ms
4. Support HDMI2.0 interface connection to external displays for synchronous output, 4K/1080P auto switching according to monitor resolution
5. Support USB 3.0 interface for synchronous output of real-time video
6. Provide real-time video WDR output function
7. Provide real-time video EDF function
8. USB flash drive for captured image and video storage, support local preview and playback
9. Excellent ISP with local tone mapping and 3D denoising
10. Provide two sets of default ISP parameters for biological microscope and stereo microscope
11. Embedded XCamView for the control of the camera and image processing, supporting automatic edge finding and measurement functions
12. New browsing function, providing rich file operation functions, image to image comparison, image to real-time video comparison, multi-image EDF and other functions
13. ImageView software for PC
14. iOS/Android applications for smart phones or tablets

Specification:

• Sensor : Sony IMX678(Color)
• Sensor Size(mm): 1/1.8"(7.68x4.32)
• Pixel(μm): 2.0x2.0
• G Sensitivity Dark Signal: 3541mv with 1/30s 0.15mv with 1/30s
• FPS/Resolution: 60@3840*2160
• Binning: 1x1
• Exposure: 0.019~1000

Interface or Button:

• USB 2.0: Connect USB mouse for easy operation with embedded XCamView software
• USB Video: Connect PC or other host device to realize video image transmission
• USB3.0:

Connect USB flash drive to save pictures and videos
Connect 5G WiFi module to transfer video wirelessly in real time
Connect USB microphone for audio and video recording

• ON/OFF: Power switch (Short press to turn on, long press to turn off)

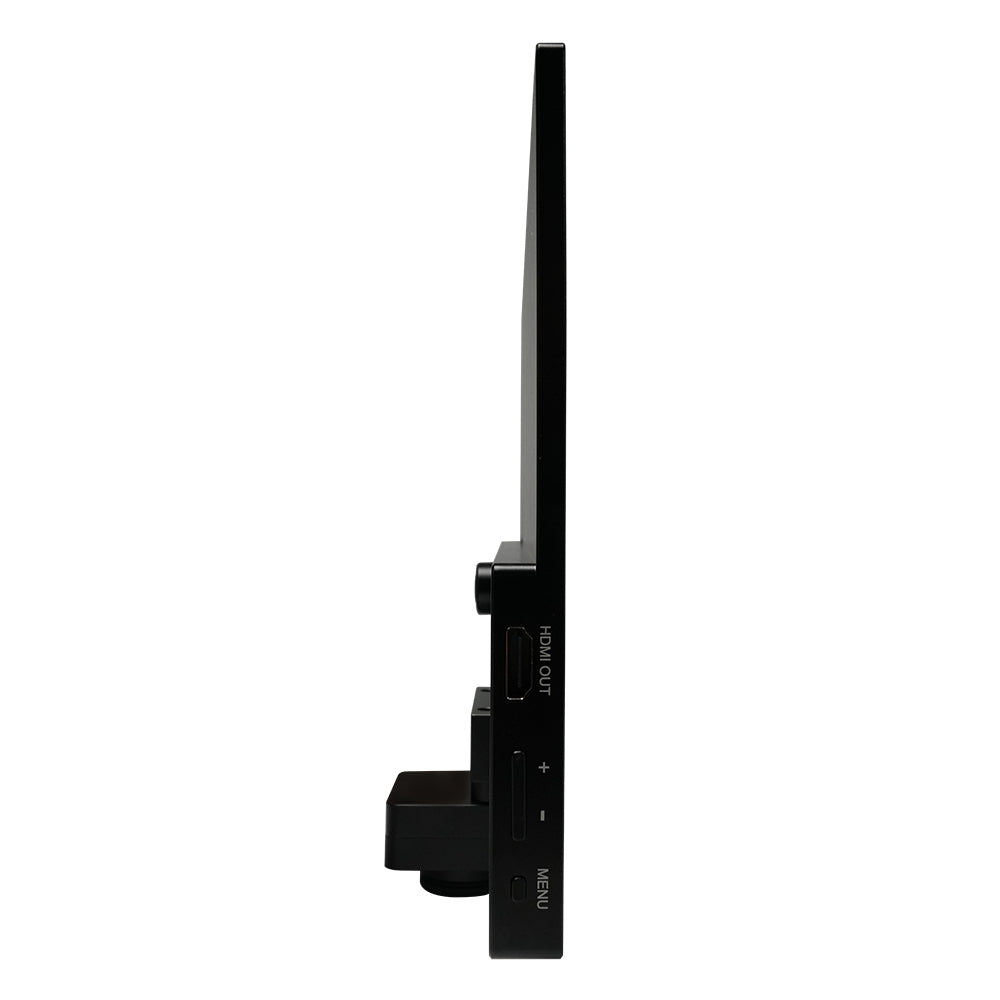

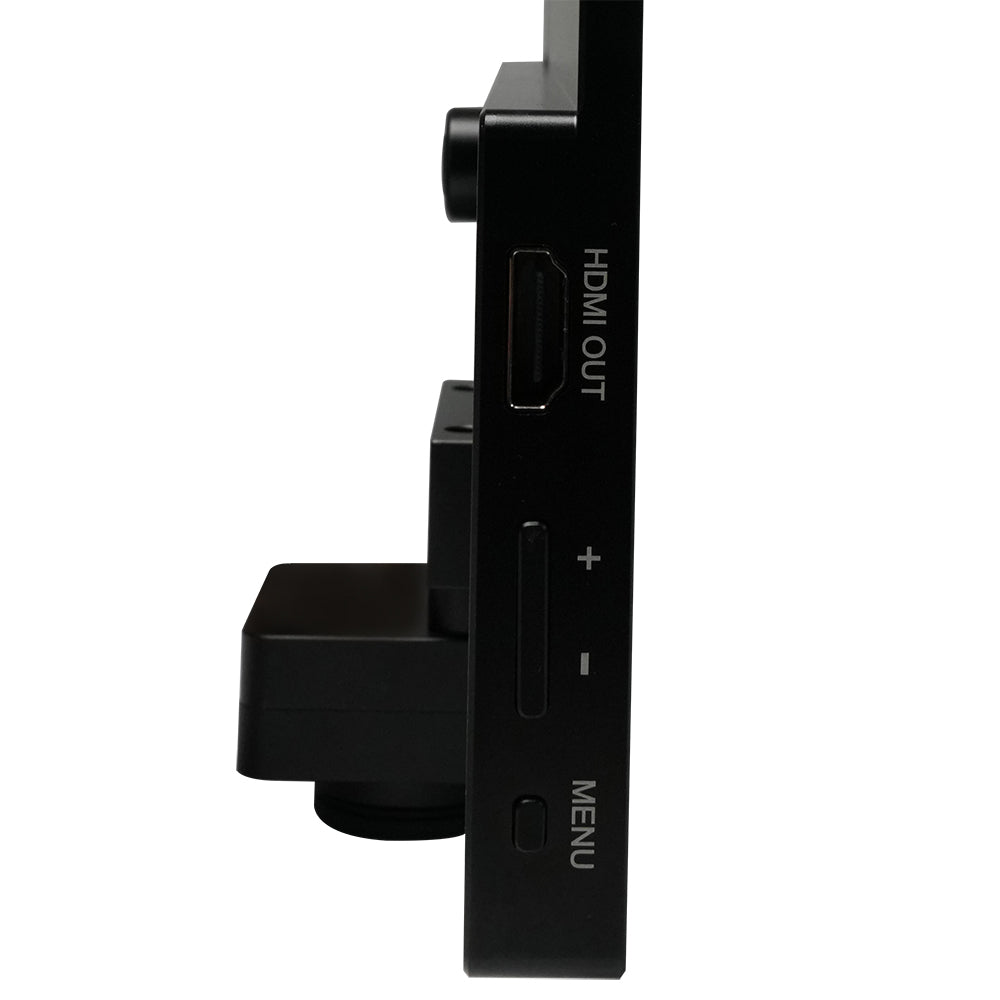

• HDMI OUT: Comply with HDMI2.0 standard. Used to extend 4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors
• LED: LED status indicator
• +/-: Display brightness adjustment button
• MENU: Display menu key

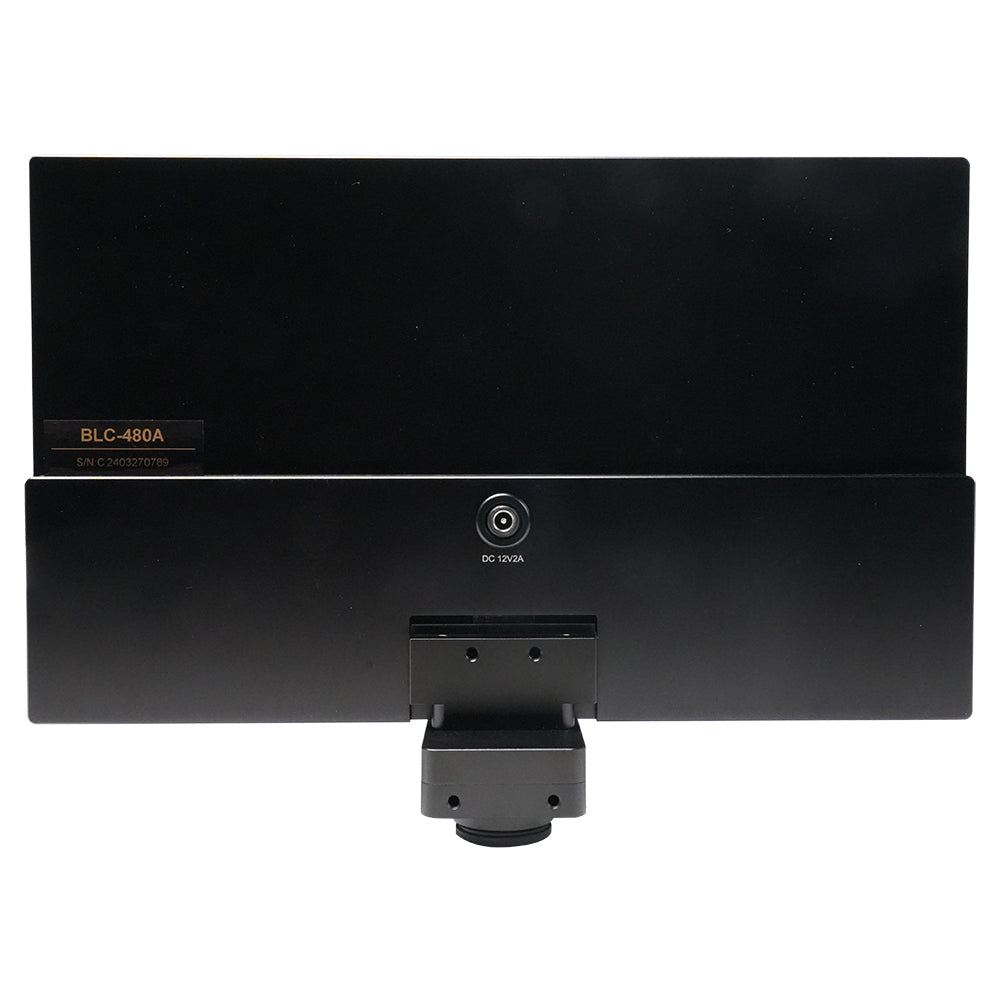

• DC 12V2A: Power adapter connection (12V/2A)

Video Output Interface:

• HDMI Interface: Synchronize video output through HDMI OUT interface, comply with HDMI2.0 standard; 60fps@4K Or 60fps@1080P
• WiFi Interface: Connecting 5G WiFi adapter (USB3.0 slot) in AP/STA mode
• USB Video Interface:

Connecting USB Video port of PC for video transfer
H264/MJPEG format video

Function Description:

• Video Saving:

Video format：8M (3840*2160) H264/H265 encoded MP4 file
Video saving frame rate: 60fps in Low Delay mode; 30fps in WDR mode

• Image Capture: 8M (3840*2160) JPEG/TIFF image in USB flash drive
• Measurement Saving:

Measurement information saved in different layer with image content
Measurement information is saved together with image content in burn in mode

• ISP: Exposure(Automatic / Manual Exposure) / Gain， White Balance(Manual / Automatic / ROI Mode)， Sharpening， 3D Denoise， Saturation Adjustment， Contrast Adjustment， Brightness Adjustment， Gamma Adjustment, Hue Adjustment, Color to Gray， 50HZ/60HZ Anti-flicker Function
• Image Operations: Zoom In/Zoom Out (Up to 10X), Mirror/Flip, Freeze, Video EDF, Cross Line, Overlay, PIP, Browser (including Picture Browsing, Video Playback, Video Compare, Picture Compare, Picture EDF, Image Processing), Measurement Function
• Embedded RTC(Optional): To support accurate time on board
• Restore Factory Settings: Restore camera parameters to its factory status
• Multiple Language Support: English / Simplified Chinese / Traditional Chinese / Korean / Thailand / French / German / Spanish / Japanese / Italian / Russian / Dutch / Portuguese

Software Environment under WiFi/USB Video Output:

• White Balance: Auto White Balance
• Color Technique: Ultra-Fine Color Engine
• Capture/Control SDK: Windows/Linux/macOS/Android Multiple Platform SDK (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)
• Recording System: Still Picture or Movie
• Operating System:

Microsoft® Windows® 8 / 8.1 / 10 / 11(32 & 64 bit)
OSx(Mac OS X)
Linux

• PC Requirements:

CPU: Equal to Intel Core2 2.8GHz or Higher
Memory: 4GB or More
Ethernet Port: RJ45 Ethernet Port
Display:19” or Larger
CD-ROM

Operating Environment:

• Operating Temperature (in Centidegree): -10~ 50
• Storage Temperature (in Centidegree): -20~ 60
• Operating Humidity: 30~80%RH
• Storage Humidity: 10~60%RH
• Power Supply: DC 12V/2A Adapter

Dimension

Packing Information:

Standard Packing List:

A: Gift box: L:35.6cm W:24.9cm H:7.5cm (1pcs, 1.68Kg/ box)

B: BLC-480A Series All-in-One Camera

C:

Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 2A

American standard: Model: POWER-12V2A(MX24Z1-1202000) + American standard plug

European standard:Model: POWER-12V2A(MX24Z1-1202000)  + European standard plug

D: USB wireless mouse

E: USB3.0 A male to A male gold-plated connectors cable /2.0m

F: CD (Driver & utilities software, Ø12cm)

Optional Accessory:

G: HDMI Cable

H: USB flash drive

I: USB WiFi adapter

J: Adjustable lens adapter:

C-Mount to Dia.23.2mm Eyepiece Tube
(Please choose 1 of them for your microscope)

K: Fixed lens adapter

C-Mount to Dia.23.2mm Eyepiece Tube
(Please choose 1 of them for your microscope)

Note: For J and K optional items, please specify your camera type(C-mount, microscope camera or telescope camera), our engineer will help you to determine the right microscope or telescope camera adapter for your application;

L: 108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube

M: 108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube

N: Calibration kit

106011/TS-M1(X=0.01mm/100Div.);
106012/TS-M2(X, Y=0.01mm/100Div.);
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
