Product Description

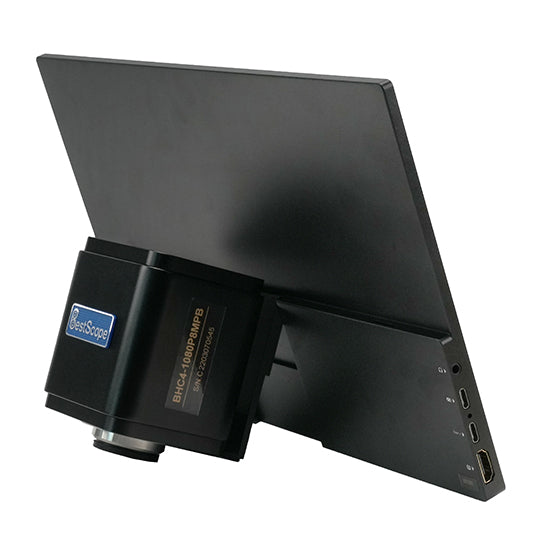

1. Camera Specification (BHC4-1080P8MPB):
- Sensor : IMX415(Color)
- Sensor Size(mm): 1/2.8"(5.57x3.13)
- Pixel(μm): 1.45x1.45
- G Sensitivity Dark Signal: 300mv with 1/30s 0.13mv with 1/30s
- FPS/Resolution: 30@1920*1080(HDMI) 30@3840*2160(USB)
- Binning: 1x1
- Exposure: 0.04~1000
Interface:
- USB Mouse Connect: USB mouse for easy operation with embedded XCamView software;
- USB Video: Connect PC or other host device to realize video image transmission;
- HDMI: Comply with HDMI1.4 standard. 1080P format video output for standard displayer;
- DC12V: Power adapter connection (12V/1A);
- SD: Comply with SDIO3.0 standard and SD card could be inserted for video and images storage;
- LED: LED status indicator;
- ON/OFF: Power switch;
Video Output Interface:
- HDMI Interface: Comply with HDMI1.4 standard; 30fps@1080P;
- USB Video Interface: Connecting USB port of PC for video transfer; MJPEG format video;
Function Description:
- Video Saving: Video format: 1920*1080, H264/H265 encoded MP4 file;
- Video saving frame rate: 30fps (BLC-280)
- Image Capture: 8MP (3840*2160) JPEG/TIFF image in SD card;
- Measurement Saving: Measurement information saved in layer mode with image content;
- Measurement information is saved together with image content in burn in mode.
- ISP Function: Exposure (Automatic / Manual Exposure) / Gain, White Balance (Manual / Automatic / ROI Mode), Sharpening, 3D Denoise, Saturation Adjustment, Contrast Adjustment, Brightness Adjustment, Gamma Adjustment, Color to Gray, 50HZ/60HZ Anti-flicker Function
- Image Operations: Zoom In/Zoom Out, Mirror/Flip, Freeze, Cross Line, Overlay, Embedded Files Browser, Video Playback, Measurement Function
- Embedded RTC(Optional): To support accurate time on board
- Restore Factory Settings: Restore camera parameters to its factory status
- Multiple Language Support: English / Simplified Chinese / Traditional Chinese / Korean / Thai / French / German / Japanese / Italian / Russian
Software Environment under USB Video Output:
- White Balance: Auto White Balance
- Color Technique: Ultra-Fine Color Engine
- Capture/Control SDK: Windows/Linux/macOS/Android Multiple Platform SDK (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)
- Recording System: Still Picture or Movie
- Operating System:
- Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 /10(32 & 64 bit)
- OSx(Mac OS X)
- Linux
- PC Requirements:
- CPU: Equal to Intel Core2 2.8GHz or Higher
- Memory: 4GB or More
- Ethernet Port: RJ45 Ethernet Port
- Display:19” or Larger
- CD-ROM
Operating Environment:
- Operating Temperature (in Centidegree): -10~ 50
- Storage Temperature (in Centidegree): -20~ 60
- Operating Humidity: 30~80%RH
- Storage Humidity: 10~60%RH
- Power Supply: DC 12V/1A Adapter
2. LCD Screen Specification (HD1080P133A):
- Active Area(Inch): 13.3
- Video Fomat: HDMI
- Resolution: 1080P
- Contrast: 1000:1
- Color Gamut: 72%
- View Angle: IPS Full View(178-degree)
Basic Performance:
- LCD Panel: IPS LCD Screen (Super TFT)
- Input Video Format : HDMI
- Native Resolution: 1920 x 1080
- Display Type: 16:9 Ratio 13.3 Inch Active Matrix Super TFT LCD
- Typical Contrast Ratio: 1000:1
- Colors: 16.7 Million
- Viewing Angle(L/R/U/D): IPS Full View (178)
- Active Display Area: 295mm(W) × 165mm(H)
- Pixel Pitch: 0.154(W) X 0.154(H) mm
- Refresh Rate: 60Hz
- Brightness: 400cd/m2
- Backlight: LED Backlight, 50000 hours
Outline Parameter:
- Color: Black
- Dimension: 306(L)*183(H)*8(T) mm
- Weight 450g
Operating Environment:
- Operating Temperature: -15 Degree~55 Degree
- Humidity Non Condensing: Operating:10%-90%, Storage: 5%-90%
- Synchronization Range: 30-80 KHz Horizontal, 55-75 Hz Vertical
- Power Supply: AC110V-220V /DC5~12V(1A ) (Type C)
- Power Consumption: Max 12W
Features:

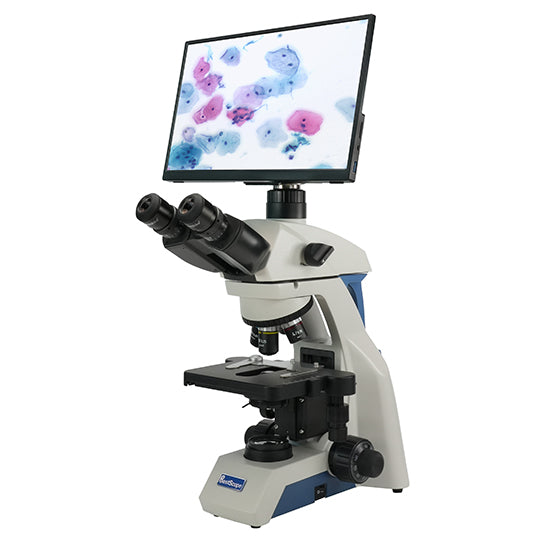

- All in 1( HDMI+USB+SD card) C-mount camera with Sony high sensitivity CMOS sensor;
- Simultaneous HDMI & USB output;
- Built-in mouse control;
- Built-in image capture & video record to SD card;
- Built-in camera control panel, including exposure(manual/auto)/gain, white balance(lockable), color adjustment, sharpness and denoising control;
- Built-in toolbar including zoom, mirror, comparison, freeze, cross, browser functions;
- Built-in image & video browsing, display & play;
- Ultra-Fine color engine with perfect color reproduction capability (USB2.0);
- Support standard UVC for Windows/Linux/Mac (USB);
- With advanced video & image processing application ImageView, which including professional image processing such as 2D measurement, HDR, image stitching, EDF(Extended Depth of Focus), image segmentation & count, image stacking, color composite and denoising(USB);
- CNC precision machining shell;
- True 1080P HDMI displayer;
- 13.3 inch active area;
- IPS LCD panel, 178 degree wide viewing angle;
- HDR dynamic image enhancement;
- 72% SRGB primary gamut;
- 400cd/m2 display brightness, high contrast ratio up to 1000:1;
- 4mm narrow frame design on three sides, with 90% of the screen area, great visual experience;
- No delay is felt with 3ms response, and dynamic definition is optimized to keep the picture stable and clear without residual shadow;
- Integrated invisible folding support, easy viewing angle adjustment.
Application:
- Scientific research, education (teaching, demonstration and academic exchanges);
- Digital laboratory, medical research;
- Industrial visual (PCB examination, IC quality control);
- Medical treatment (pathological observation);
- Food (microbial colony observation and counting);
- Aerospace, military (high sophisticated weapons).
