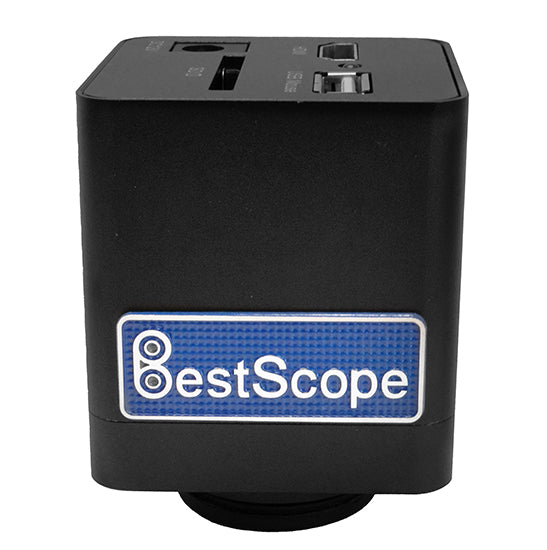

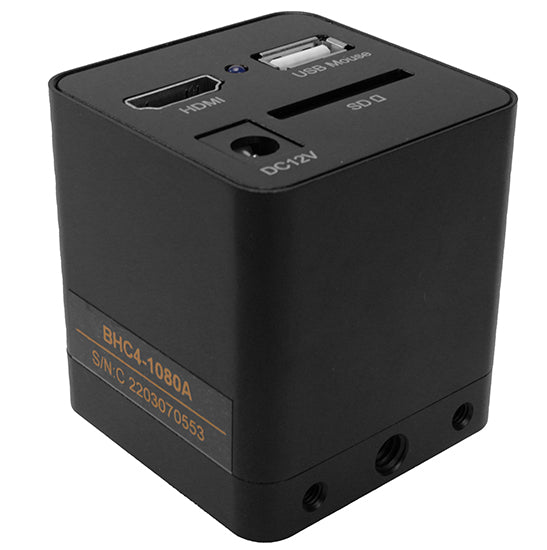

BHC4-1080A HDMI Digital Microscope Camera (Sony IMX307 Sensor, 2.0MP)
BHC4-1080A HDMI Digital Microscope Camera (Sony IMX307 Sensor, 2.0MP)
BHC4-1080A HDMI Digital Microscope Camera (Sony IMX307 Sensor, 2.0MP)
BHC4-1080A HDMI Digital Microscope Camera (Sony IMX307 Sensor, 2.0MP)
BHC4-1080A HDMI Digital Microscope Camera (Sony IMX307 Sensor, 2.0MP)
BHC4-1080A HDMI Digital Microscope Camera (Sony IMX307 Sensor, 2.0MP)

BHC4-1080A HDMI Digital Microscope Camera (Sony IMX307 Sensor, 2.0MP)

$350.99 $194.99
BHC4-1080A HDMI Digital Microscope Camera (Sony IMX307 Sensor, 2.0MP)

BHC4-1080A HDMI Digital Microscope Camera (Sony IMX307 Sensor, 2.0MP)

$350.99 $194.99
Product Description
DETAILS:
  • Sensor: Sony IMX307(Color)
  • Sensor Size(mm): 1/2.8"(5.57x3.13)
  • Pixel Size(μm): 2.9x2.9
  • FPS: 60@1920*1080(HDMI)
  • Binning:1x1
  • Exposure: 0.01~1000
  • G Sensitivity: 1300mv with 1/30s
  • Video Output Interface: HDMI Interface
FEATURES:
  • Sony Starvis back illuminated CMOS sensor.
  • FHD HDMI video outputs.
  • SD card for the captured image and video storage.
  • Embedded XCamView for the control of the camera.
  • With strong ISP and other related processing functions.
Application:
  • Scientific research, education (teaching, demonstration and academic exchanges).
  • Digital laboratory, medical research.
  • Industrial visual (PCB examination, IC quality control, mechanical part inspection).
  • Medical treatment (pathological observation).
  • Food (microbial colony observation and counting).

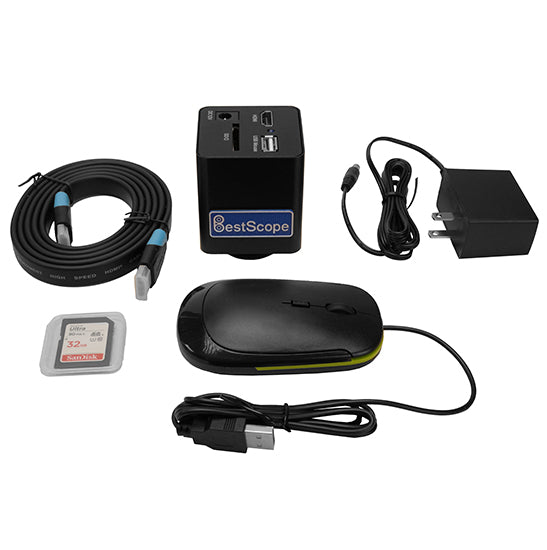

Packing Information:
  • Gift box : L:17.5cm W:17.5cm H:8.5cm (1pcs, 0.85kg/ box)
  • BHC4-1080A
  • Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A

American standard: Model: GS12U12-P1I 12W/12V/1A: UL/CUL/BSMI/CB/FCC
EMI standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338
EMS standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3, class A light industry standard
European standard:Model:GS12E12-P1I 12W/12V/1A; TUV(GS)/CB/CE/ROHS
EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338
EMS standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3, class A light industry standard

  • HDMI cable
  • USB mouse
